Mokwheel

Obsidian

Obsidian

$2,399.00 USD
$2,399.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

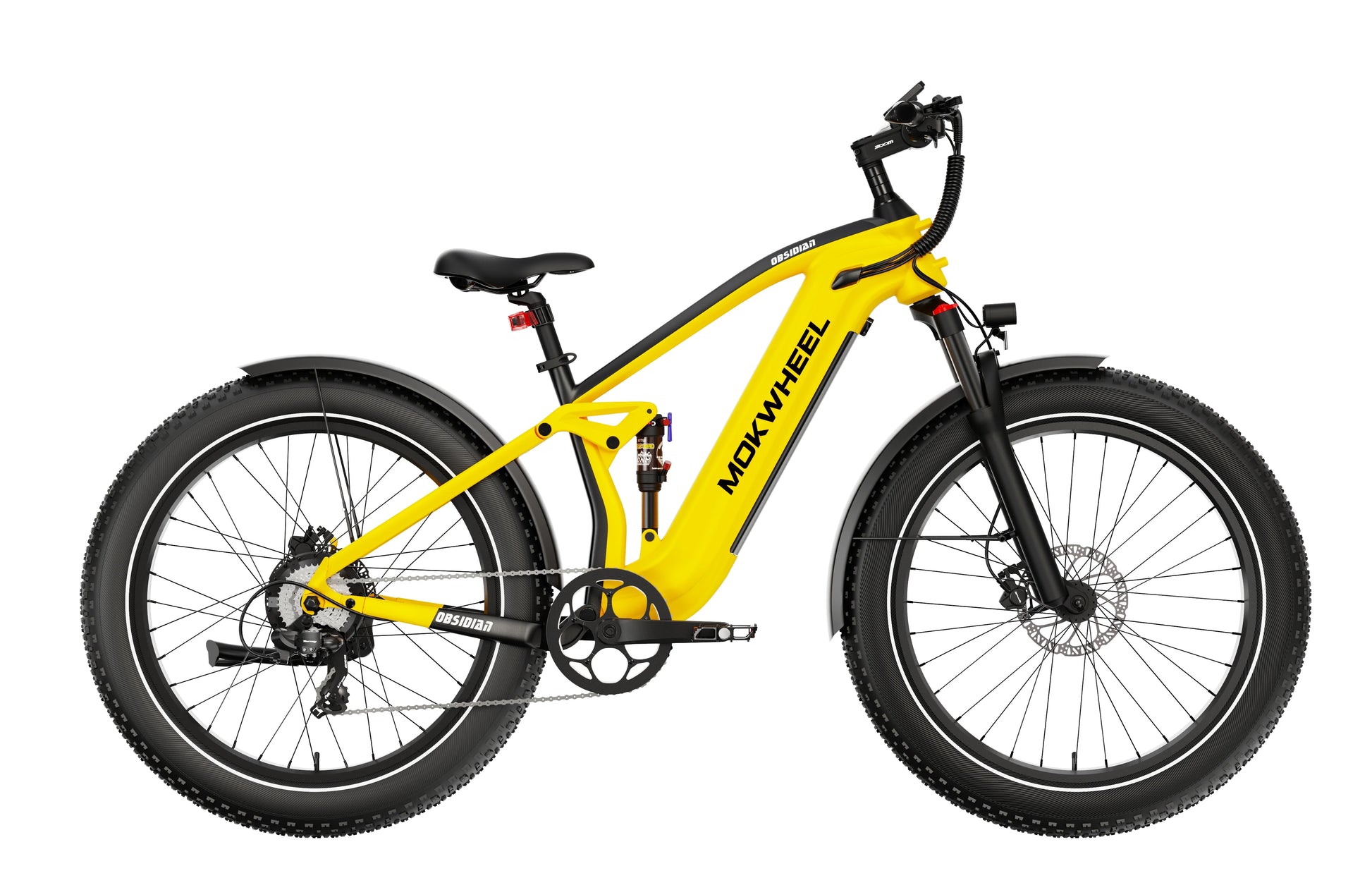

Mokwheel Obsidian

**** Mokwheel has stoped responding to warranty request in their bikes, assume this bike has no warranty! Cyclone will offer 90 days labor only warranty on remaining mokwheel Bikes in our inventory.

The Obsidian adopts a unique shock absorption design, so that you will no longer be affected by bumps, and you can easily control various road conditions. At the same time, its electric power-assist system allows you to easily climb steep climbing sections, making your travel more relaxed.

Designed for the path less traveled.

The Obsidian adopts a unique shock absorption design, so that you will no longer be affected by bumps, and you can easily control various road conditions. At the same time, its electric power assist system allows you to easily climb steep climbing sections, making your travel more relaxed.

“Mokwheel – The Obsidian is a serious contender in the saturated fat-tire Ebike space"

Electrifiedreviews

“This is an area where I think Mokwheel has set the Obsidian up for some success – it’s an e-bike that I think of as an off-roader first, whereas others I think of as for paved trails that I could do light offroading with.”

Electricbikereport



Battery

48V 19.6Ah
Charger
48V 3.0A
Speed Class
Up to 28 mph on Level 5 PAS
Weight
77 lbs
Range
60~80miles
Motor
48V 1000W Brushless Rear Hub Motor
Payload Capacity
400 lbs
Rider Height
5'6" ~ 6'8
Tires
CHAOYANG 26x4.0" Puncture Resistant Fat Tire
Display
LED Integrated
Brakes
TEKTRO HD-E350 Hydraulic Disc Brakes
Chain
KMC Stainless Chain
Crank Set
44T DOUBLE-SIDED ALUMINUM ALLOY CRANKSET
Derailleur
8 Speed Shimano Rear Derailleur
Front Fork
130mm Adjustable Suspension
Frame
6061 Aluminum Alloy with Internal Battery
Gearing
Shimano 8-Speed
Throttle
Thumb Throttle
Handlebar
Aluminum Alloy 31.8mm, 720mmy
Kickstand
6061 Aluminum Kickstand
Rims
Aluminum Alloy
Saddle
Customized Comfort Leather Seat
Sensor
Torque Sensors
Frame Size
Height                          5’6” - 6’8”
Reach                         23.6"
Standover Height.     45.2"
Wheelbase                 46.1"
Min Saddle Height.    36.7
Max Saddle Height.    41.7
Total Length                 74.6"
Handlebar Height.       45.2"
Seat Tube                     17.3"

  • Whether you're out for a long ride or have a nasty hill along your normal commute, if you have a bike with pedal assist you'll finish your ride feeling more energized instead of drained. Going over rough terrain and up hills becomes much easier with the pedal assist feature.
    Torque Sensors
    • The lightweight design of the Air Rear Shock not only provides silky smooth travel, but thanks to air springs and the latest in damping control technology, it also delivers a spring rate that is normally only available on heavier coilovers. Not only does it smooth out the most intense off-road races, it also reduces your weight so you can enjoy your off-road riding to the fullest.
      Air Rear Shock Absorber
  • Obsidian features a flexible and adaptive hydraulic front fork that helps smooth bumps and improves off-road performance. In addition, the fork has a lockout lever to allow for quick adjustments while riding to stiffen or soften the fork, depending on weight and riding style.
    Adjustable Suspension Fork
    • The thumb throttle is more comfortable and safer than the half-twist throttle, and it can reduce wrist strain and eliminate the fatigue brought by long time riding.
      Thumb Throttle
      • We use the TEKTRO HD-E350 hydraulic disc brake, which is characterized by high stability, low reaction force and high safety factor as an oil brake. Compared to wire brakes, which are prone to aging, corrosion, overuse or brake fracture, oil brakes are also safer than wire brakes.
        TEKTRO HD-E350 Hydraulic disc brake
        • The shift finger paddle is semi-hidden for easy operation by the rider, easily changing the gear size to allow the rider to choose the intensity of the ride they want.
          Shimano 8-speed Shifter
