euphree

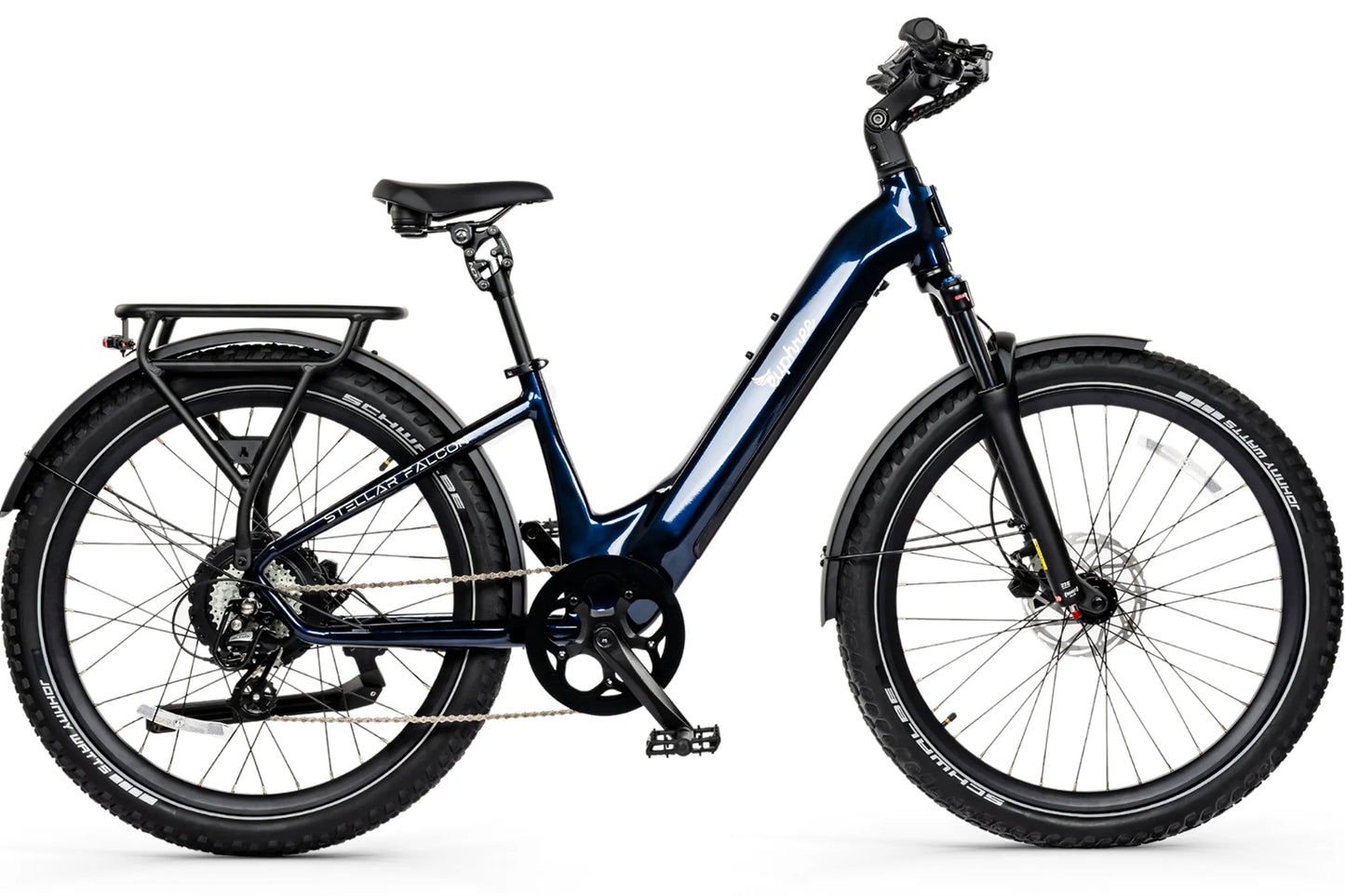

Euphree Stellar Falcon Step-Thru
Euphree Stellar Falcon Step-Thru
Regular price
$2,099.00 USD
Regular price
$2,299.00 USD
Sale price
$2,099.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Euphree Stellar Falcon Step-Thru
| Motor: Bafang Geared Rear Hub, 750W Sustained Power, 1200W Peak Power | Battery: 48V, 15Ah (720Wh) Lithium-Ion with 850 cycles, using LG cells |
| Controller: Euphree Custom 48V, 25 Amp, fully integrated in frame | Display: Color LCD with battery level, speedometer, range, and more |
| Headlight: 200 Lux (Sate-Lite Osram) | Rear Light: Brake light signal with 220° visibility |
| Brakes: Tektro E350 Hydraulic Brakes with motor cut-off and adjustable levers | Front Fork: SR Suntour Air Suspension with 110mm travel, preload, and lockout adjustment |
| Crank Set: 170mm aluminum crank arm on 50T double-sided chain guard | Sensor: Torque and cadence sensor, bottom bracket |
| Brake Rotor: 180mm front and rear | Brake Pads: Tektro Aries ceramic brake pads |
| Derailleur: Shimano Altus 8-speed derailleur | Fenders: Aluminum matte black |
| Chain: KMC Z7 steel chain | Frame: 6061 aluminum frame |
| Rear Rack: Bolted on, 55 lbs max capacity | Freewheel: 8-speed, 11-32 tooth gearing |
| Kickstand: Heavy-duty aluminum with adjustable plastic boot | Tires: Schwalbe Johnny Watts, 27.5 x 2.8" |
| Display Readouts: Current speed, max speed, average speed, odometer, trip odometer, trip time, battery level, power output, and time | ||
| Display Features: USB type-C charging port |
| Rider Height: 5'2" to 6'1" | Seat Tube Length: 15.5" | Total Length: 74" |
| Minimum Seat Height: 34" | Maximum Seat Height: 42" | Wheelbase: 46" |
| Handlebar Heights: 47-48" | Frame Size: 23" | Handlebar Width: 29" |
| Bike Weight: 62 lbs | Front Rack Capacity: 25 lbs | Rear Rack Capacity: 55 lbs |
Air Suspension PSI Guide
| Rider Weight (lbs) | PSI |
|---|---|
| <120 | 40-55 |
| 120-145 | 55-65 |
| 145-165 | 65-75 |
| 165-185 | 75-85 |
| 185-205 | 85-100 |
| 205< | 100+ |
| Factory Setting | 95 |
| Max Pressure | 145 |
